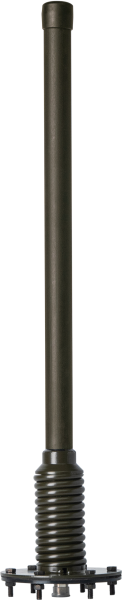

Antenna AGENT-470FL
- Details
- Characteristics
- Reviews
ANTENNA AGENT-470FL is a high-performance L-Band antenna (1350–1390 MHz) designed for armored vehicles and specialized platforms.
Key Features:
- Frequency Range: 1350–1390 MHz (L-Band)
- High Gain: 6 dBi, VSWR ≤ 2:1
- 360° Horizontal Omnidirectional Pattern and 25° Vertical Beamwidth
- Max Power: 50 W, Impedance: 50 Ω
- Robust Design: sealed steel spring base with flange mount minimizes connector damage on impact
- Flexible Mounting: flange can be fitted to armored hulls, special vehicles, and NPK
Specifications:
- Height: 595 mm
- Diameter: 28 mm
- Weight: 1675 g
- RF Connector: TNC (male)
The AGENT-470FL delivers reliable communications under harsh conditions, withstanding heavy vibration and mechanical stress.
| Brand | Agent |
|---|---|
| Frequency stability | 1350 - 1390 (L-Band) МГц |
| Operating temperature | −40...+60 ˚С |
| Connector type | TNC (male) |
| Length | 595 mm |
| Amplification factor | 6,00 dBi |
| Direction pattern in the horizontal plane | 360˚ |
| Direction pattern in the vertical plane | ±25˚ |
| Потужність | max 50 W |
