In stock
SKU
404U
00-00027512

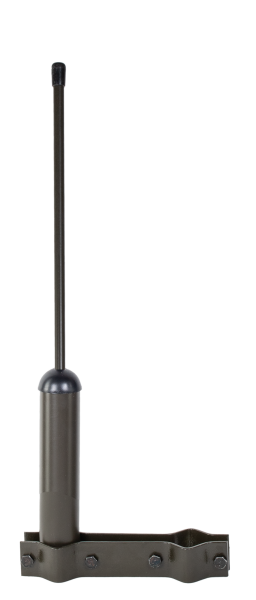

Agent-404U J-shaped Whip UHF Antenna
- Details
- Characteristics
- Reviews
| Brand | Agent |
|---|---|
| Frequency stability | 400–470 МГц |
| Operating temperature | −40...+60 ˚С |
| Connector type | Made to order |
| Length | A-404V: 1600 mm; A-404U: 500 mm |
| Operating frequency band (voltage standing-wave ratio = 1.5) | A-404V: 7 MHz; A-404U: 15 MHz |
| Amplification factor | 6.5 dBi |
| Wind load | A-404V: 120 m/sec; A-404U: 40 m/sec |
| Direction pattern in the horizontal plane | 360˚ |
| Direction pattern in the vertical plane | A-404V: ±40˚; A-404U: ±25˚ |
| Polarisation | Vertical |
| Mast diameter | A-404V: 35–55 mm; A-404U: 30–70 mm |
| Потужність | 200 W max |
